Power Though Commercial Cuts Quicker and Easier.

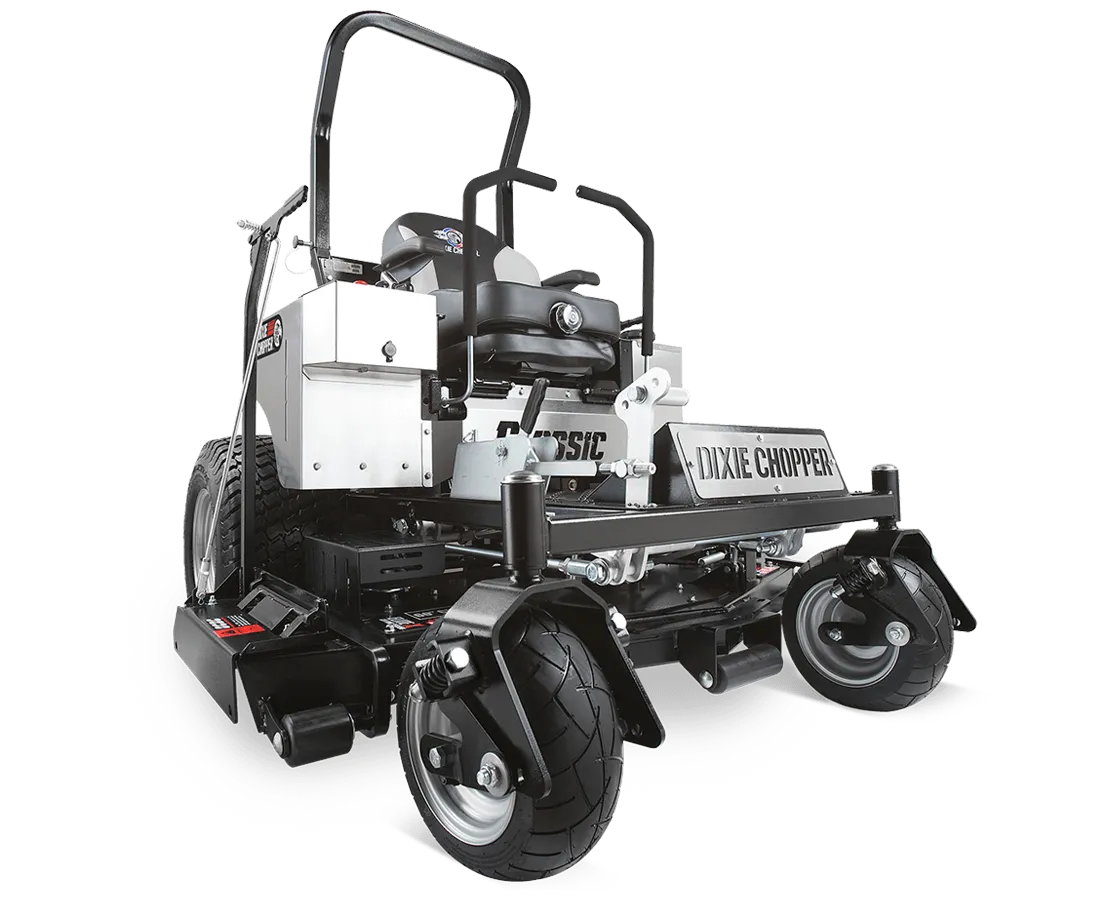

The Classic is the ultimate mowing machine with the perfect combination of commercial quality with industrial features.

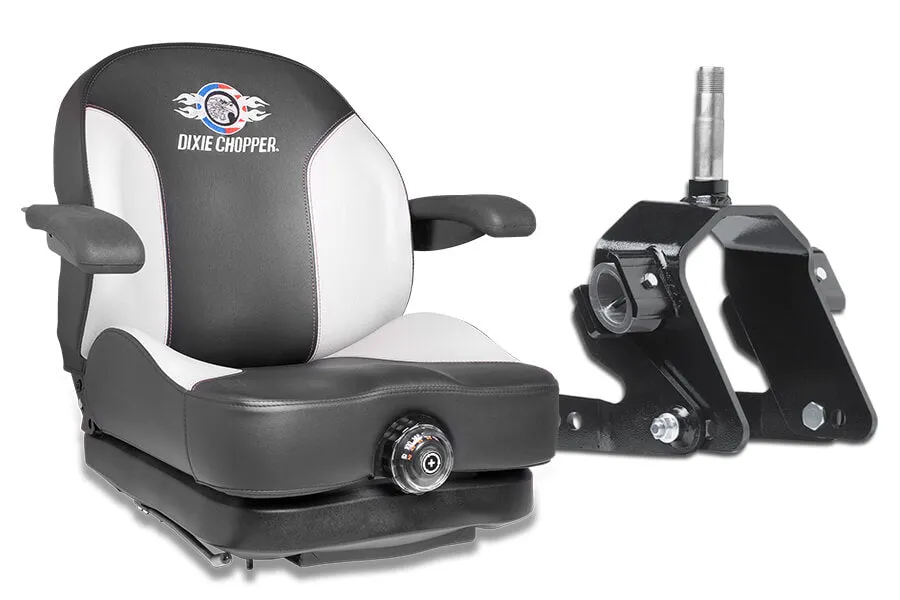

- High-Performance Package - Comes standard with Suspension seat and Springer Forks on select models.

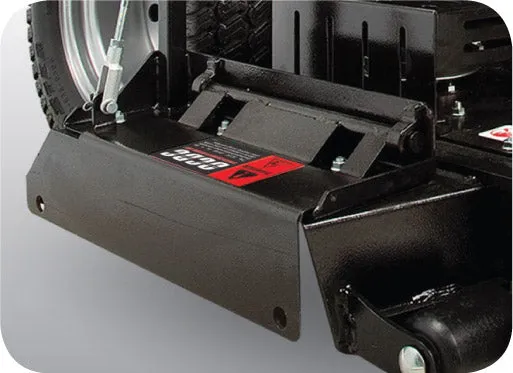

- OCDC - Open and close the discharge chute on command

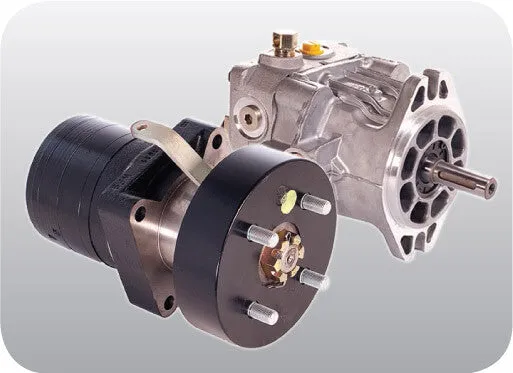

- Pump & Wheel Motors - Stronger transmissions for extended system life.

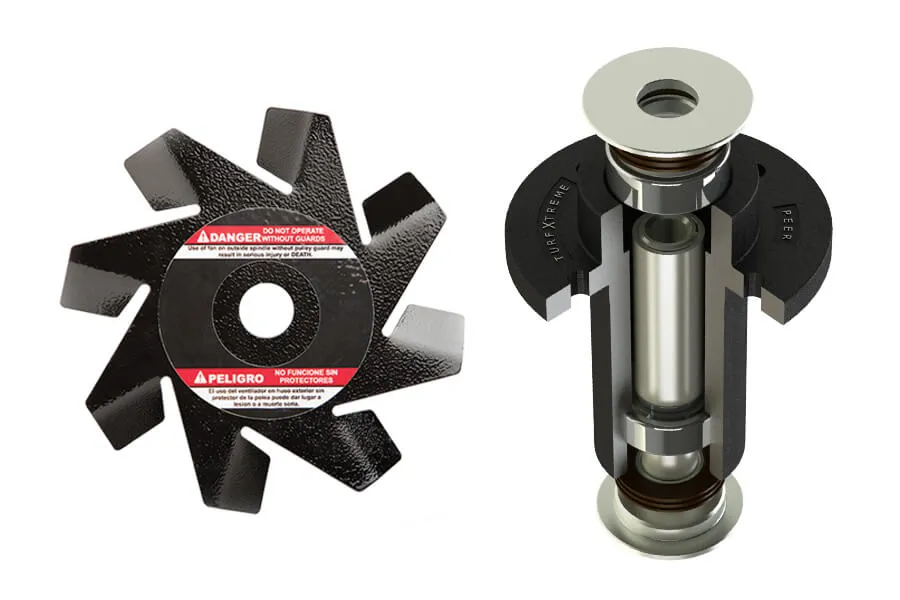

- Heavy-Duty Spindles & Cooling Fans - Keep spindles and belts cool.

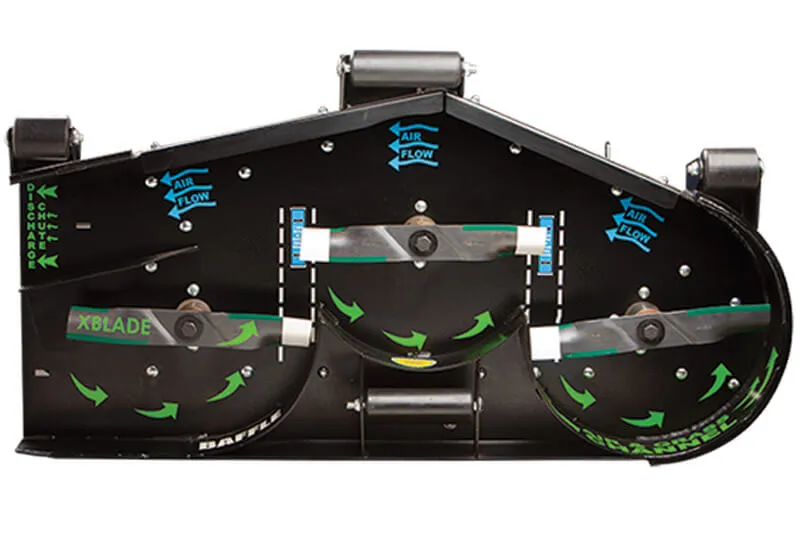

- 50", 60" and 72" Elite X Deck - Handles all grass types in any situation.

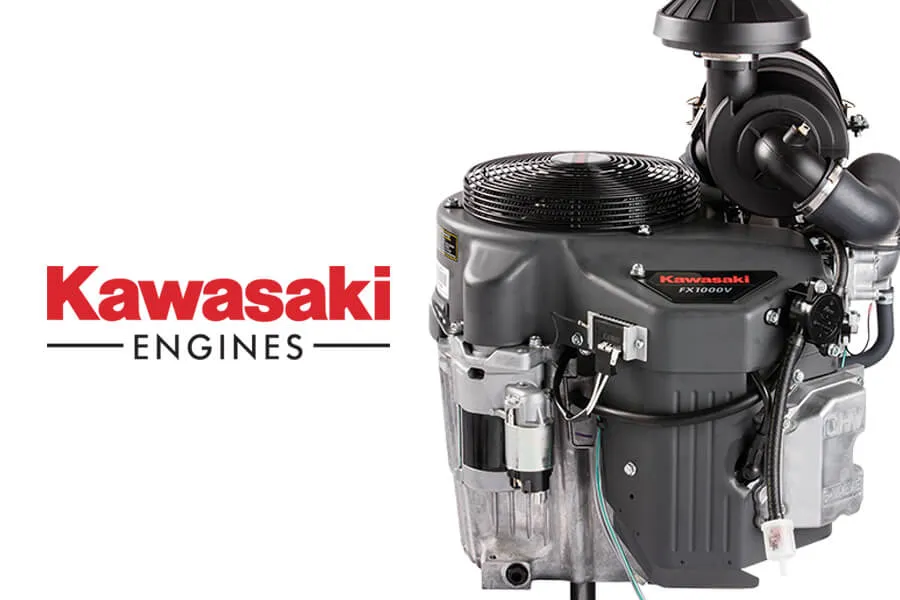

- Power and More Power - Powered by an industry preferred Kawasaki® engine with options up to 35 horsepower to tackle the tough jobs with ease.
Dixie Chopper Accessory Compatibility Chart |
|
Dixie Chopper Classic Accessories |
|
| Striping Kit (Chains) |
|
| Mulch Kit 60" |
|
| Magic Mulcher (Whiz Mow) | |
| Twist Blade 60" |
|
| Eliminator Blade 60" |
|
| Turf Boss Tire Assembly 25 x 12-12 LH | |
| Turf Boss Tire Assembly 25 x 12-12 RH | |
| M/C Tire (Assembly) | |
| Run-Flat Rib Tire (Assembly) | |
| Electric Deck Lift |
|
| Light Kit |
|
| Black Soft-Top Sunshade |
|
| White Soft-Top Sunshade |
|
| Black Hard-Top Sunshade |
|
| White Hard-Top Sunshade | |
| Peco Pro 12 DFS Bagger (Dump From Seat with Aux Motor) |
|
___________________________________________
Specifications:
Engine |
|
| Manufacturer | Kawasaki® FX |
| Horsepower | 35 |
| Displacement | 999cc |
| Air-cleaner | 4 stage & Turbinator® Pre-Cleaner |
| Cooling | Air-cooled |
| Starter | Electric |
| Engine warranty | 3-Year |
Drive System |
|
| Pumps | Hydro-Gear® 16cc |
| Wheel motors | Parker® DG280 |
|
Ground speed |
12 mph |
| Parking brake | Automotive-Style |
| Towing capacity | 2,000 lbs |
Mower Deck |
|
| Deck Size | 60" |
| Acres/hour | 5.8 |
| Cutting height | 1.25" - 5" |
| OCDC (operator-controlled discharge chute) | Standard |
| Deck height adjustments | Manual lift, 1/4" increments |
| Electric Lift | Optional |
| Deck engagement | Ogura® 250 ft-lbs |
| Construction | 10 ga formed & welded |
| Top Plate | 7 ga bolted (not welded) |
| Blades | 3 - 20.5" x 2.5" |
| Blade Tip Speed | 18,000 fpm |
| Spindles | 1.25" effective diameter machined shaft |
| Spindle Housings | Peer® Turf Xtreme™ ductile iron (sealed) |
| Spindle Cooling Fans | Standard (3) |
| Anti-scalp rollers | 4 |
| Pulleys | Vented split 3/16" steel deep groove |
General |
|
| Battery | 12 Volt, 350cca |
| Digital display | Tachometer, hour meter, voltmeter, service alerts |
| Fuel capacity | 10 gallons |
| Rear tires | 25 x 12-12 GrassMaster |
| Front tires | 15 x 6-8 (run-flat) |
| Frame | Welded 1" x 2" tube, 7 ga formed |
| Fenders | Stainless steel |
| Floor-pan | Removable, steel |
| Seat | Full suspension, adjustable seat w/ armrests |
| Springer Forks | Standard |
Dimensions |
|
| Overall height | 53" |
| Overall height (rollbar up) | 78" |
| Overall width | 65.5" |
| Overall length | 78" |
| Overall length (rollbar down) | 81" |
| Weight | 1228 lbs |
If you have any questions about this Dixie Chopper Classic 3560KW 60" zero-turn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
