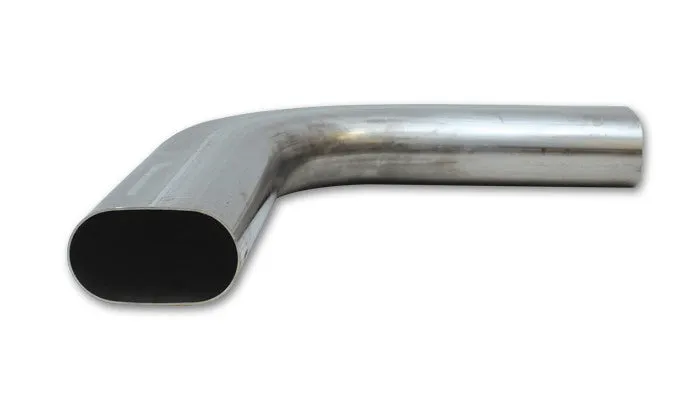

Vibrant Performance 304 Stainless Steel Oval Mandrel Bends provide fabricators with an elegant solution to the problem of insufficient ground clearance when having to build large diameter exhaust systems. Available in 3", 3.5" and 4" nominal sizes and complimented by an offering of Oval Straight Tubing and Oval to Round transitions.

DIMENSIONS:
Tube Diameter - 3.5"
Centerline Radius - 5.25"
Leg Length A - 6"
Leg Length B - 6"
Tube Thickness - 0.065" (1.65mm)

Tech Tip: The nominal size listed for oval tubing approximately equals the equivalent diameter for like-size round tubing. Eg. Nominal Size of 3" = Actual Tube Size of 2.125" x 3.5".
